The Fender Precision Elite - Preamp

The preamp is designed by Paul Gagon, who now is Vice President Technology BBE Sound inc.

The preamp is a very simple Class A transistor buffer with a slight treble boost of around 4dB at 2,500Hz.

Circuit Preamp version A

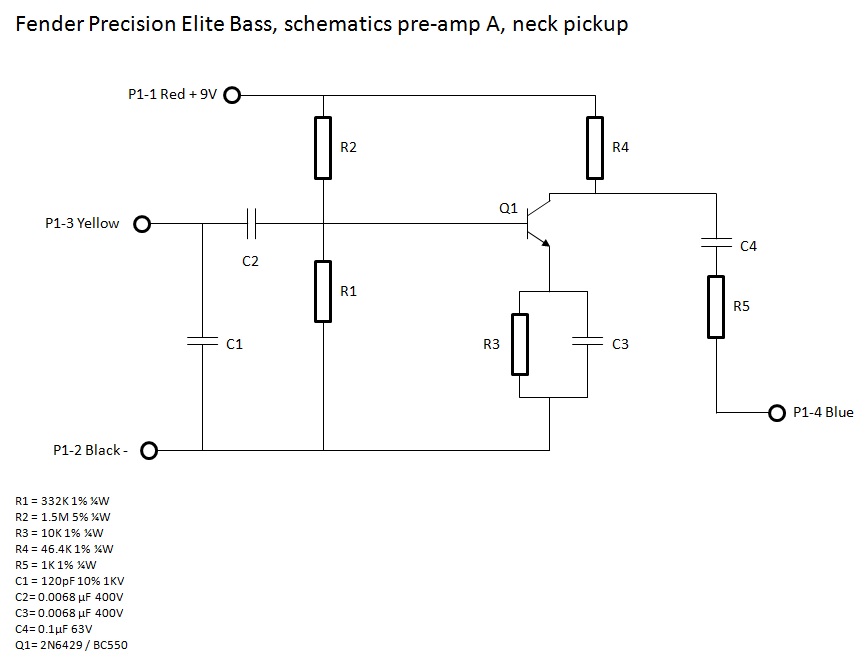

Preamp_schema A N

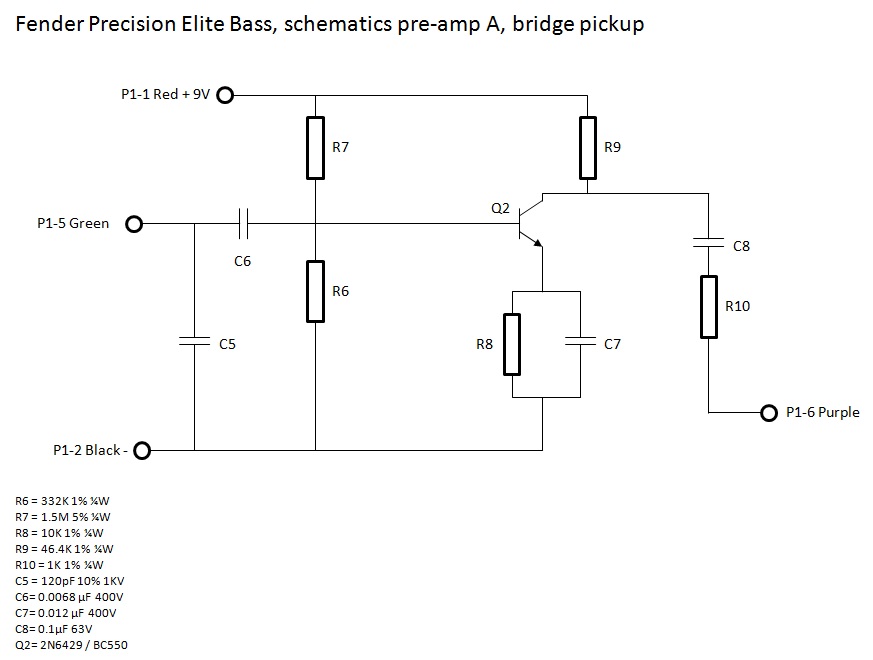

Preamp_schema A B

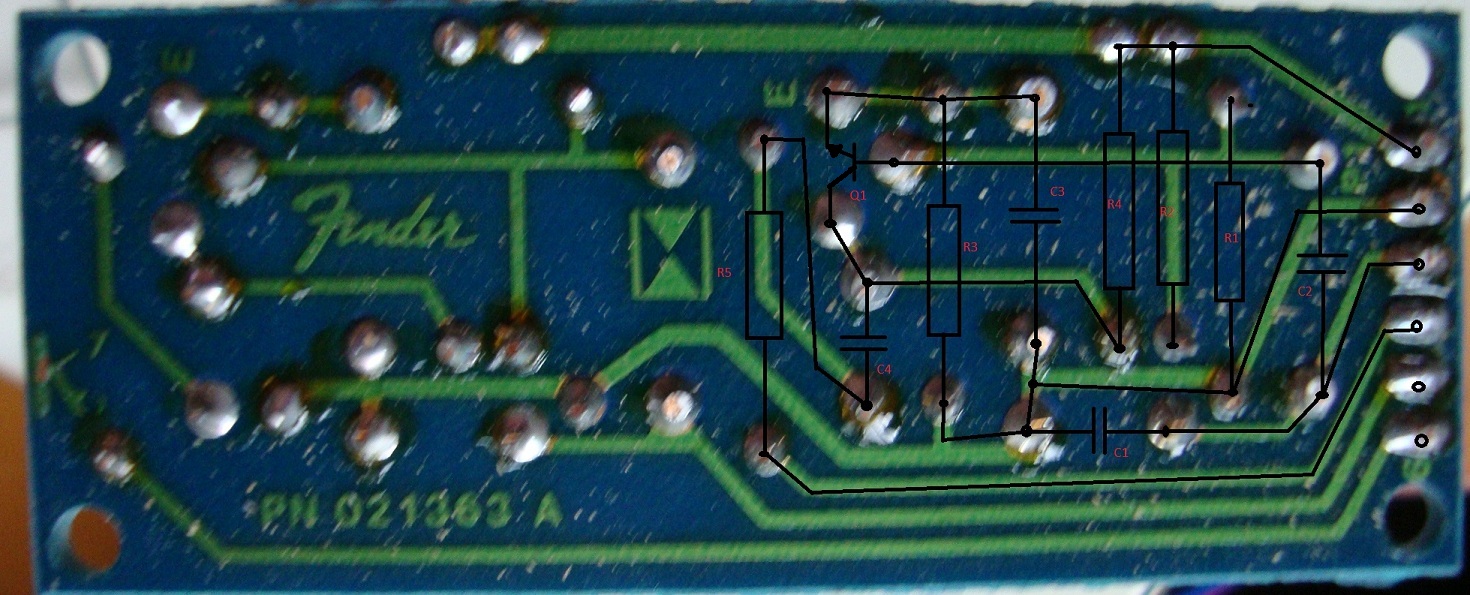

Preamp underside A


Circuit Preamp version B

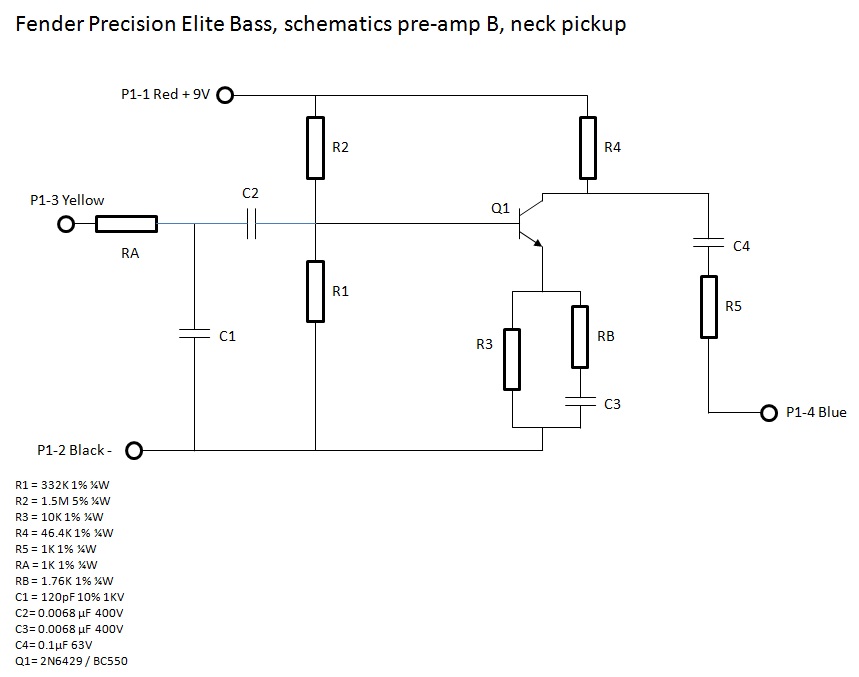

Preamp_schema B N

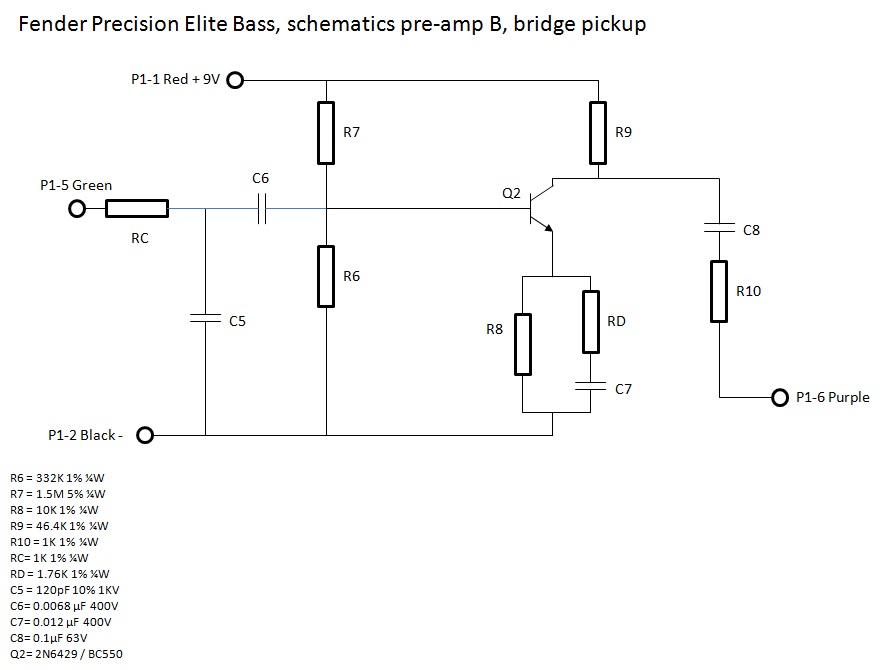

Preamp_schema B B

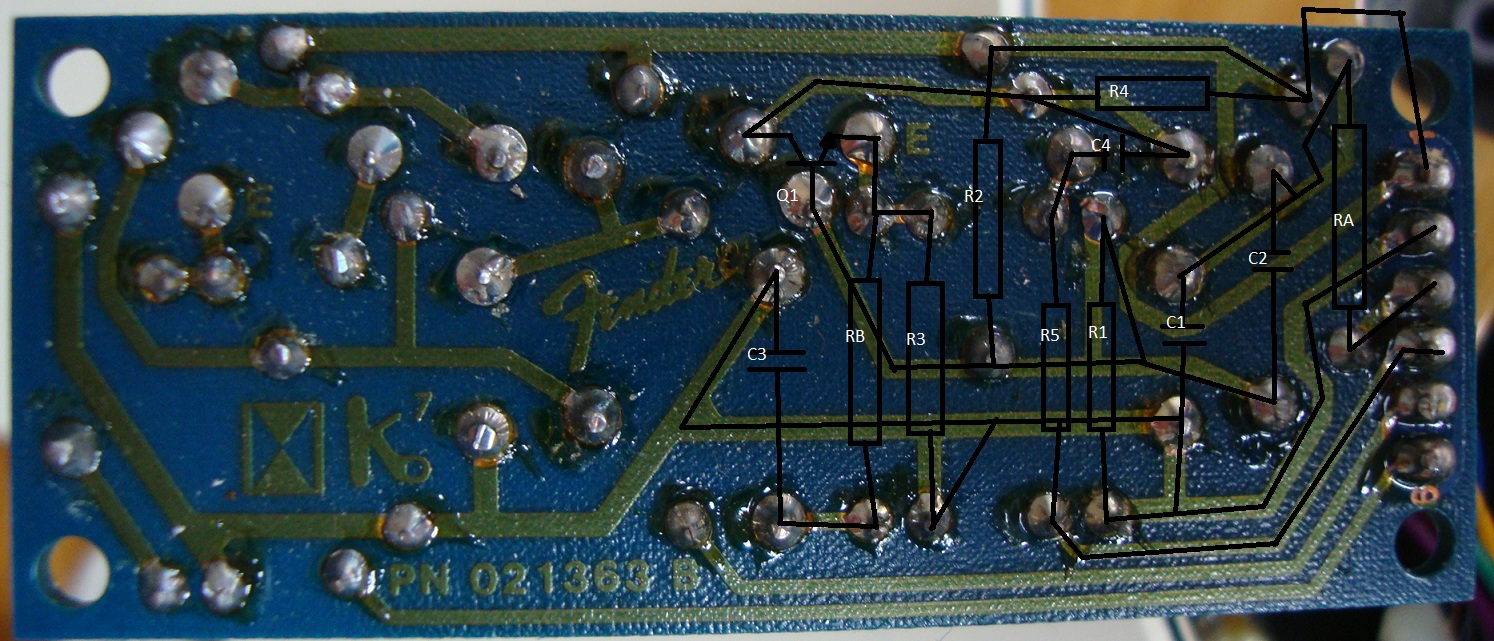

Preamp underside B

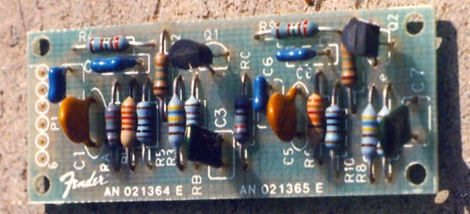

E Version
