History

In 1980 Fender added the Precision Special to the Precision Bass line. It was available in both Lake Placid Blue and Candy Apple Red with matching headstock and a maple or rosewood fingerboard (round laminated).

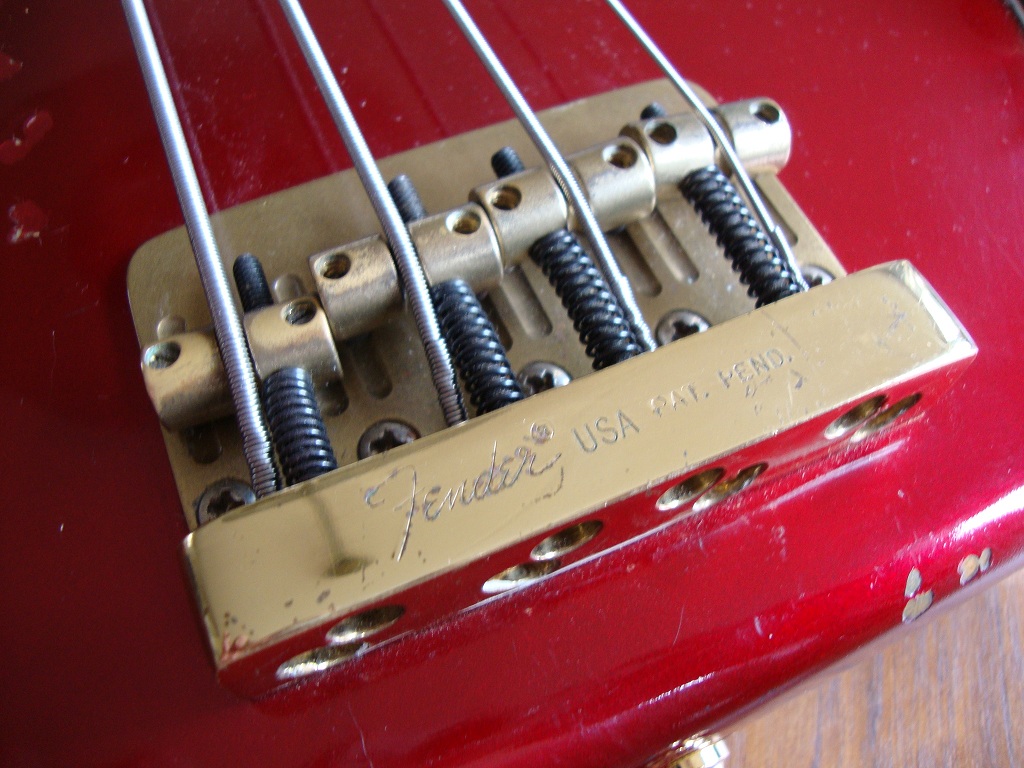

The bass featured white pickup covers, white pickguard, a brass bridge and gold hardware (tuners, thumbrest, knobs).

It was the first active bass of Fender with a specially developed active circuit (preamp, bass and treble). But it could also be used in passive mode, with a passive tone control. The preamp is probably designed by Bill Hodges and Paul Gagon, who now is vice president of engineering at G&L guitars.

In 1982 Fender added Arctic White as color option (see pictures of the Japanese brochure of 1982).

Also a walnut version of the Special was introduced; walnut body and neck, walnut fingerboard and black pickguard. Only 200 walnut specials were made. Click to see some pictures.

There are 2 versions of these walnut Precision Special. The first batch of 50 were finished completely in clear nitro cellulose lacquer. For the following three production runs of 50 per run, a tinted spray was applied except for the center of the front of the body in a sunburst-like treatment and then the entire body was finished in clear nitro. This tinting is very subtle.

In 1983 the Precision Special was succeeded by the Precision Elite .

Thanks to Brother Dave for his contribution! Visit his site: http://brotherdave.com/resources.htm.

Brochure
Jap_broch1

Jap_broch2


Serial numbers

The serial number of a Precision Bass Special 1980: E0(XXXXX).

The serial number of a Precision Bass Special from 1981: CE(XXXXX).

The serial number of a Precision Bass Special 1982 (walnut): CD(XXXXX), CO(XXXXX) or GO(XXXXX).


Ad
Brochure


Ad


Colors:
(502) Lake Placid Blue:
Lake Placid Blue


(509) Candy Apple Red:
Candy Apple Red


(580) Arctic White:
Arctic White


People who play(ed) a Precision Special: John Deacon of Queen with his Sahara Taupe Precision Special! A prototype perhaps?

John Deacon


Manual
Click to open manual


Block diagram

Block diagram


Schematic
Schematic


Wiring
Wiring


Wiring photo


My Precision Special
PBS0


PBS13


PBS14


PBS5


PBS6


PBS12


PBS16


PBS7


PBS15


PBS17


PBS2


PBS3


PBS4


PBS8


PBS9


PBS10


PBS11
